Super Cone Fender

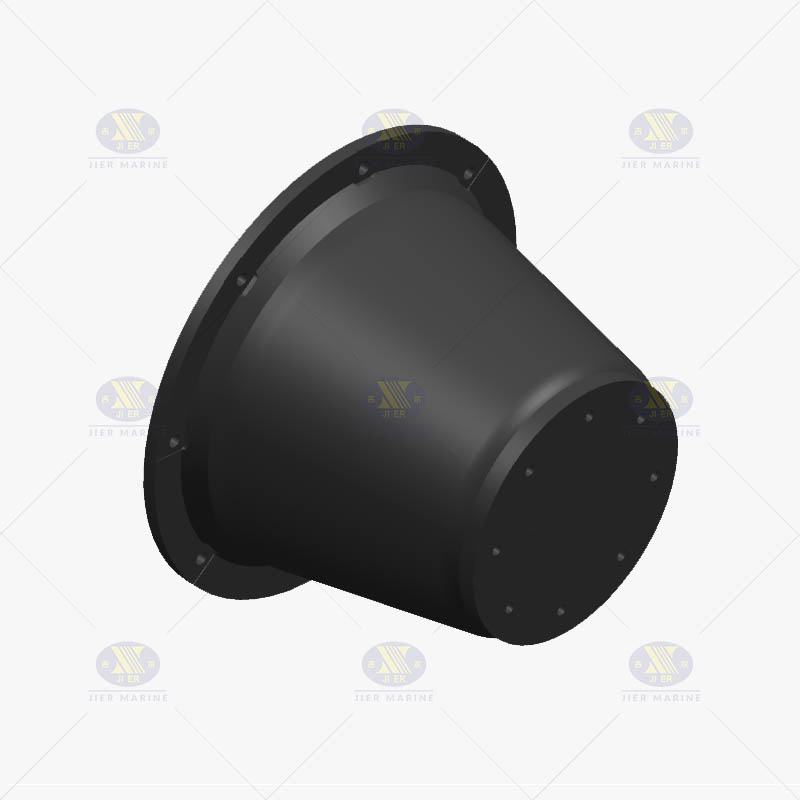

JIER MARINE JCO Super Cone Fender is the latest generation of “Cell Fender” combining excellent energy capacity with low reaction force to give the most efficient performance of any fender type.

The conical shape keeps the fender body stable under all combinations of axial, shear and angular loading. Hence, it is ideal for berths where large berthing angles and heavy impacts need to be accommodated.

  • JCO300 —— JCO2500

  • JiErMarine—Cone Fender

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Attribute

◾ Highly efficient shape

◾ Excellent under large berthing angles and shear

◾ Versatile design suits numerous applications

◾ Choice of standard & intermediate compounds

◾ Stable geometry maintains performance under all loading combinations


Application

◾ General cargo berths

◾ Bulk terminals

◾ Oil and LNG facilities

◾ Container berths

◾ RoRo and cruise terminals

◾ Parallel motion systems

◾ Monopiles and dolphins

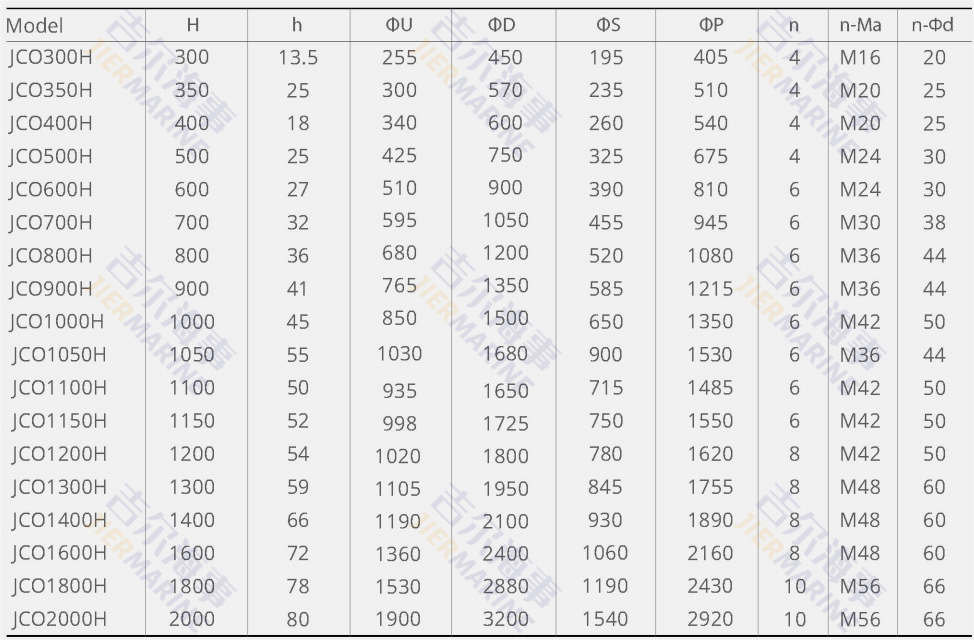

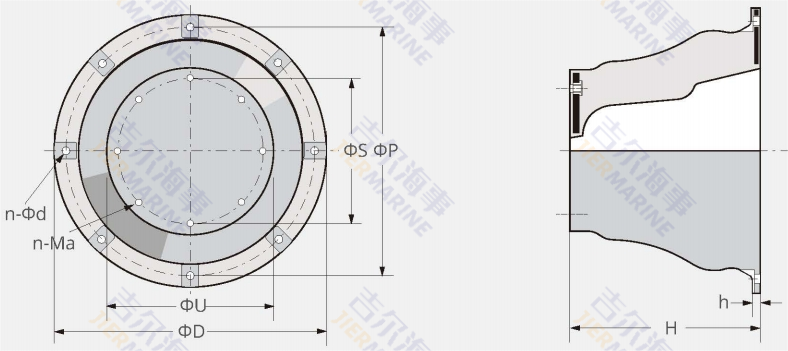

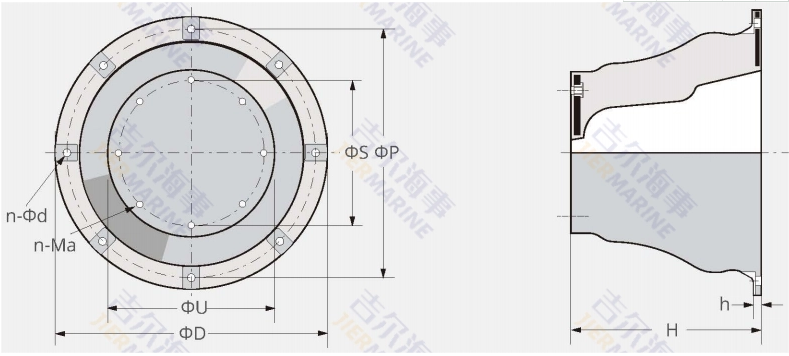

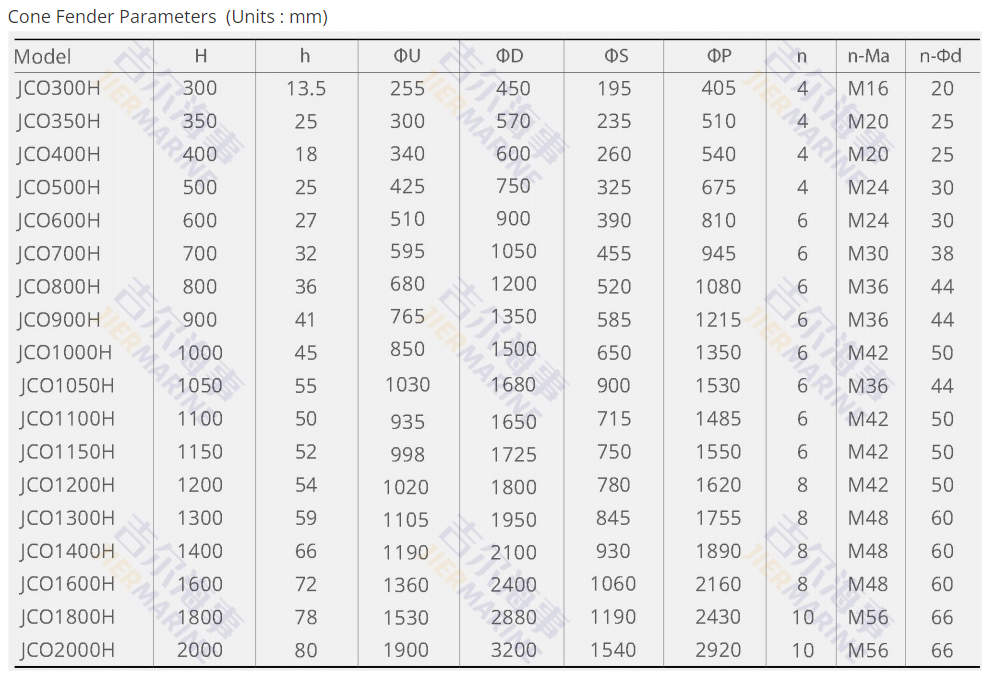

Cone Fender Parameters  (Units : mm)

Super Cone Fender cone fender cone rubber fender super cone rubber fender conical fender marine cone fender
