Hydro Pneumatic Fenders

JIER MARINE Hydro-pneumatic Fenders make contact with vessels as submarines below the waterline. Hydro-pneumatic fenders also can be used for vessel-to-vessel. Fenders are part-filled with water and ballasted to float vertically. Performance can be tuned by changing the water-to-air ratio and initial pressure.

  • JHF1700 —— JHF3300

  • Hydro Pneumatic Fender

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Attribute

  • Very robust

  • Easy assembly & installation

  • Safe operation, no risk of bursting

  • Puncture resistant


Application

  • Navy

  • Submarines

  • Some fast ferries

  • Semi-submersible oil rigs

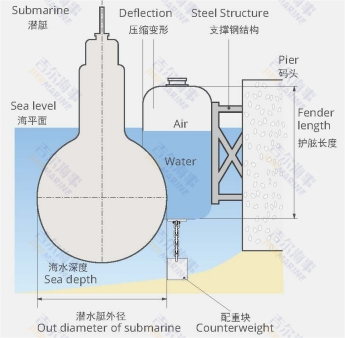

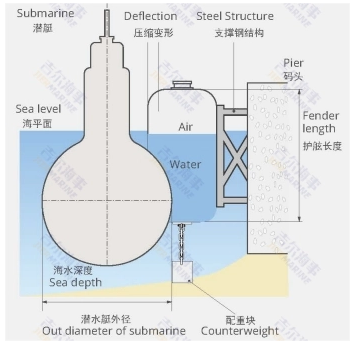

Hydro Pneumatic fender model design

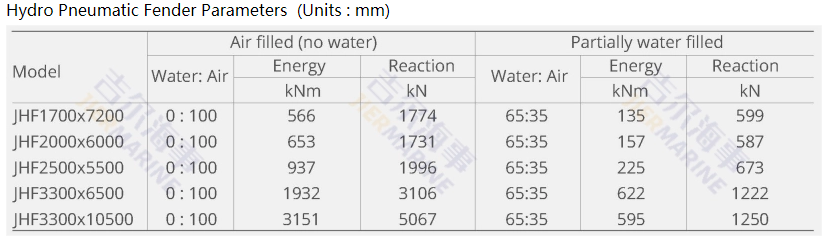

Hydro Pneumatic Fender Parameters  (Units : mm)

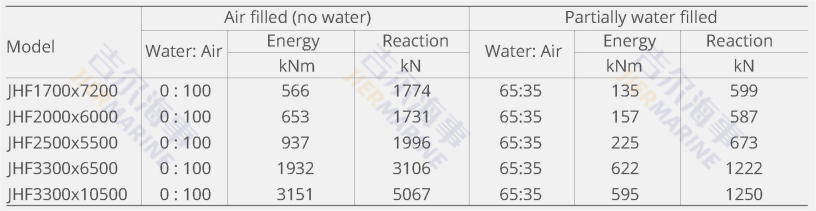

Hydro Pneumatic fender parameters

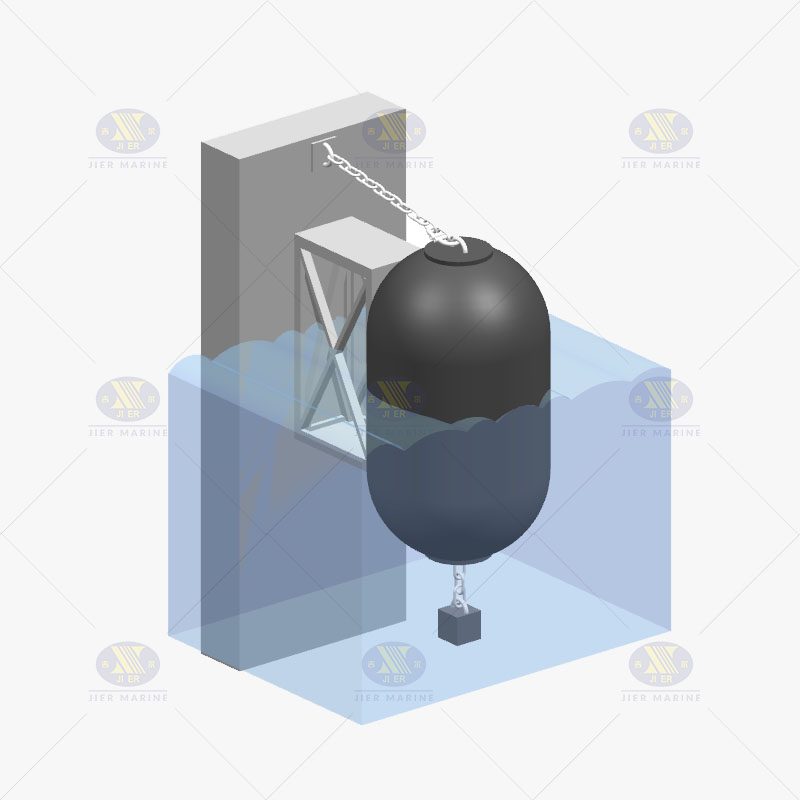

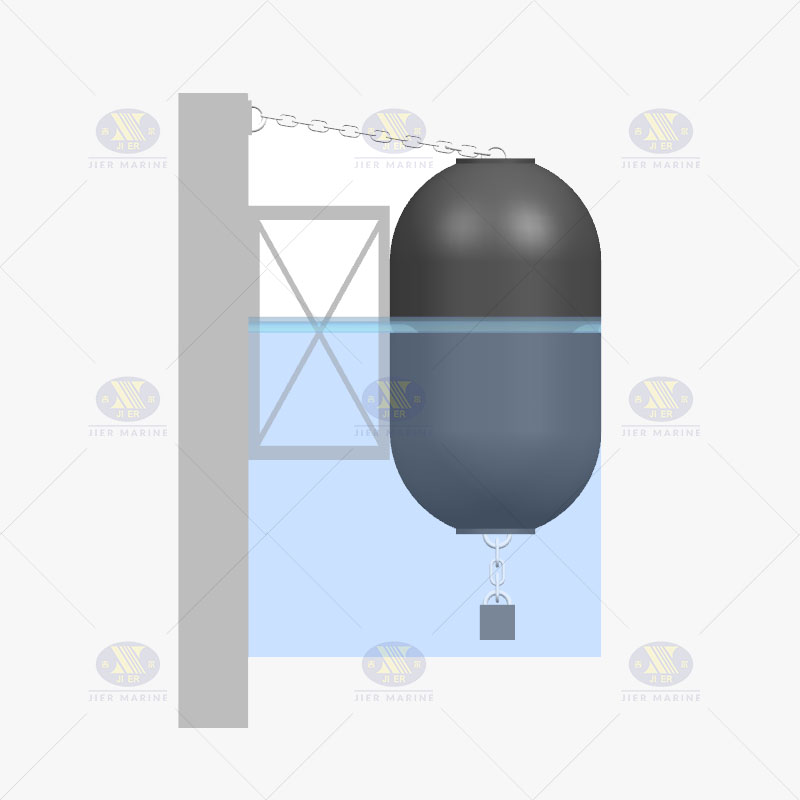

Hydro Pneumatic Fenders
