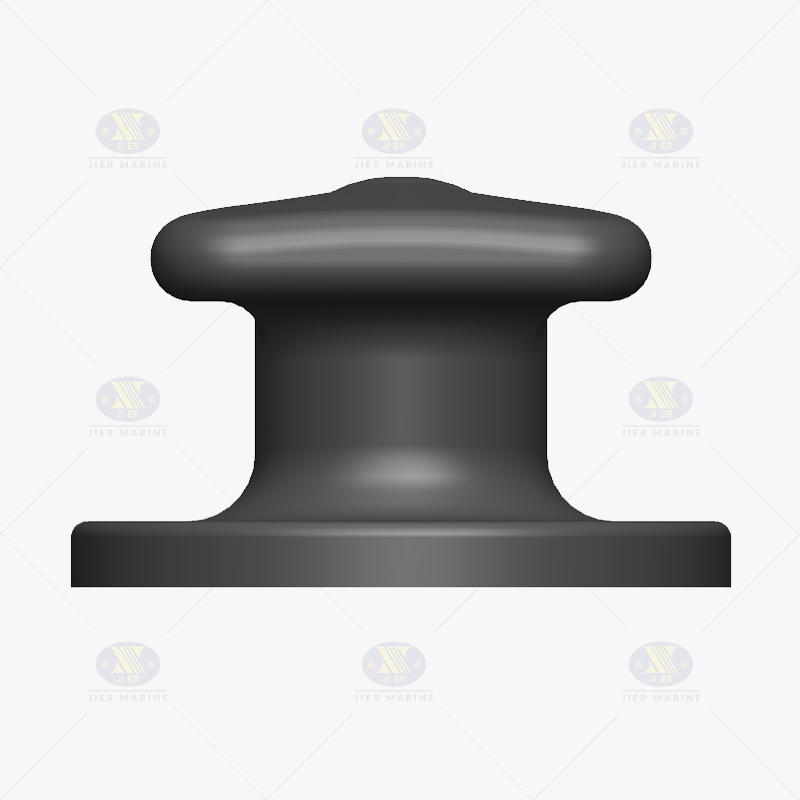

Tee Head Bollard

JIER MARINE JBT Tee Head Bollard is especially suitable for wharf corner with poor protection condition. The structure of the bollard is symmetrical to the middle axis of the column, which is convenient for installation. Tee Head Bollards accommodate multiple mooring lines and can cope with line load angle up to 45.

  • JBT10 —— JBT300

  • JiErMarine—Tee Head Bollard

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Attribute

◾ Up to 300t capacity on request

◾ Accepts very steep lines

◾ Cast iron & cast steel materials to suit climate and application

◾ Perfect for multi-use berths


Application

◾ General purpose berths

◾ Bulk terminals

◾ Oil and LNG facilities

◾ Container berths

◾ RoRo and cruise terminals

◾ Monopiles and dolphins

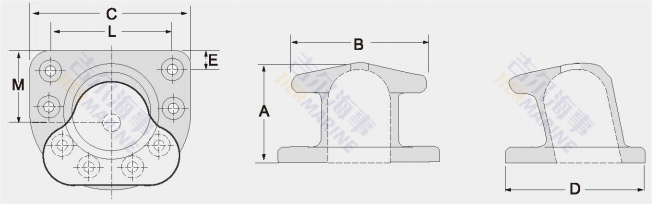

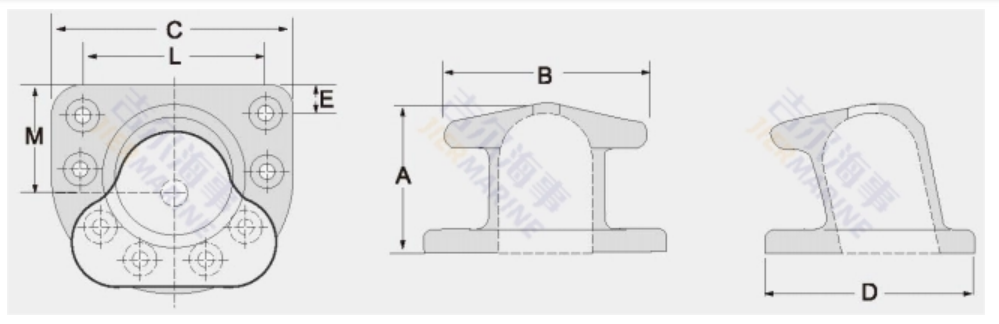

tee head bollard model design

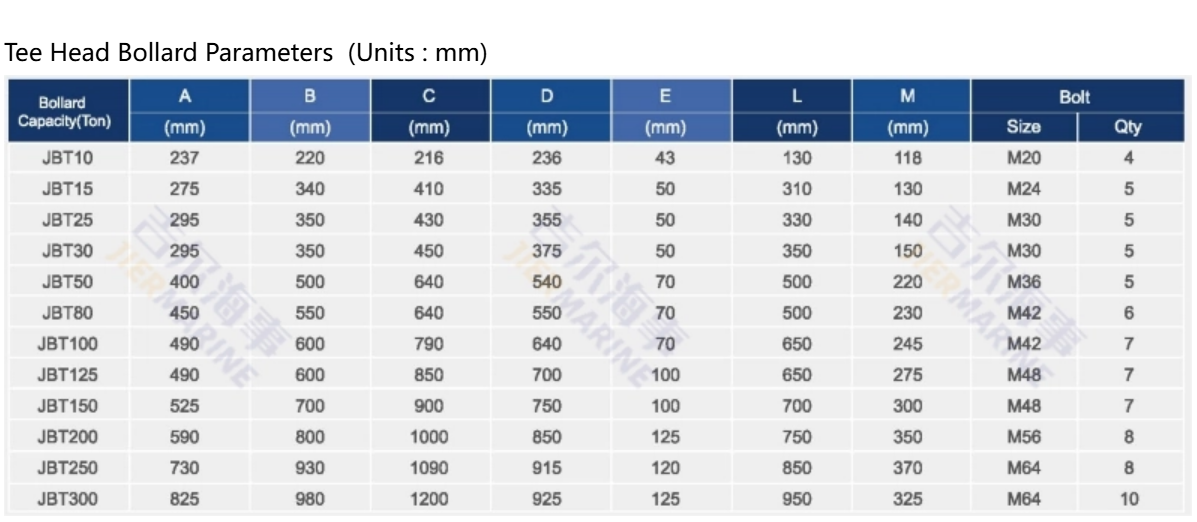

Tee Head Bollard Parameters  (Units : mm)

tee head parameters

Tee Head Bollard mooring bollard
