Double Bitt Bollard

JIER MARINE JBD Double Bitt Bollard are designed to have two-column which allows adjacent vessels to mooring independently. The angled heads are suitable for spring lines. Jier Marine can manufacture customized size as per request.

  • JBD20 —— JBD200

  • JiErMarine—Double Head Bollard

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Attribute

◾ Up to 300t capacity on request

◾ Accepts line from 2 vessels

◾ Concrete can be filled into bollards

◾ Cast steel or iron on option


Application

◾ General purpose berths

◾ Bulk terminals

◾ Oil and LNG facilities

◾ Container berths

◾ RoRo and cruise terminals

◾ Monopiles and dolphins

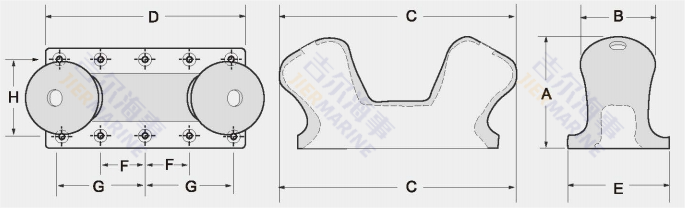

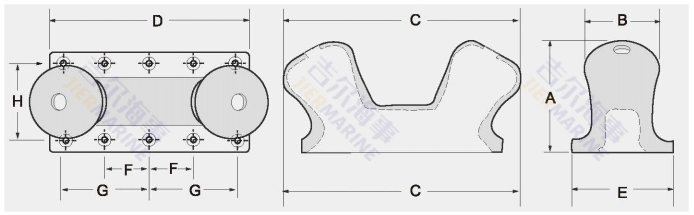

Double Head Bollard model design

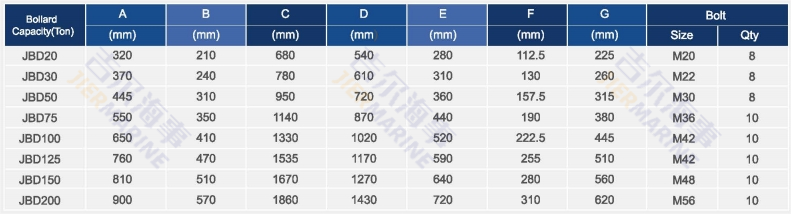

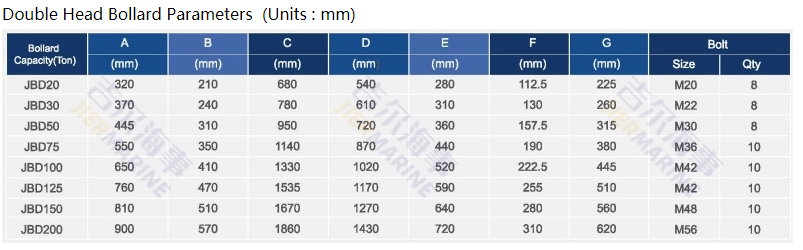

Double Head Bollard Parameters  (Units : mm)

Double Head Bollard Parameters

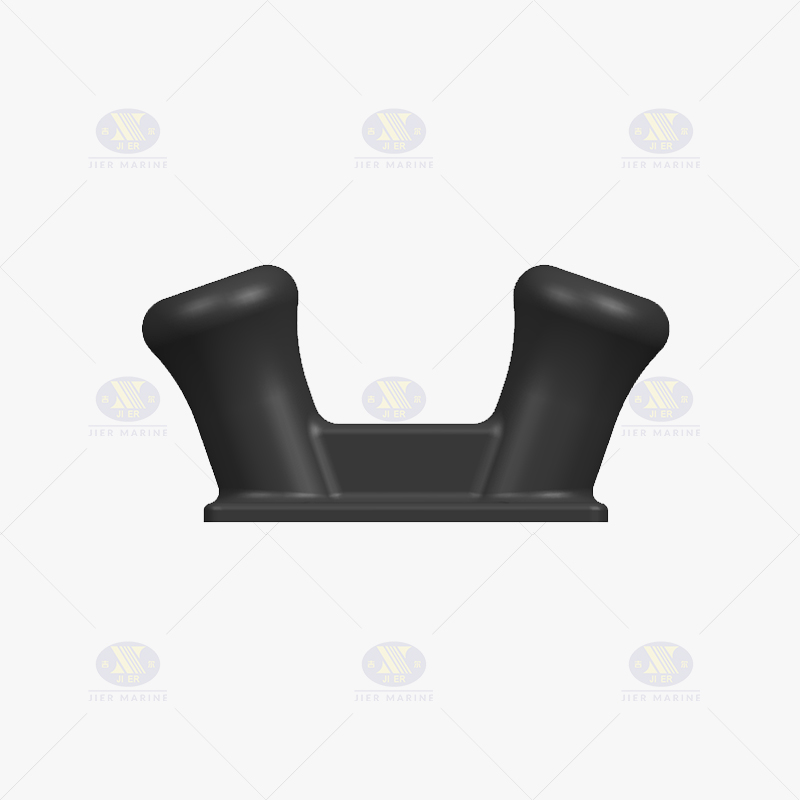

Double Bitt Bollard
