D Fender

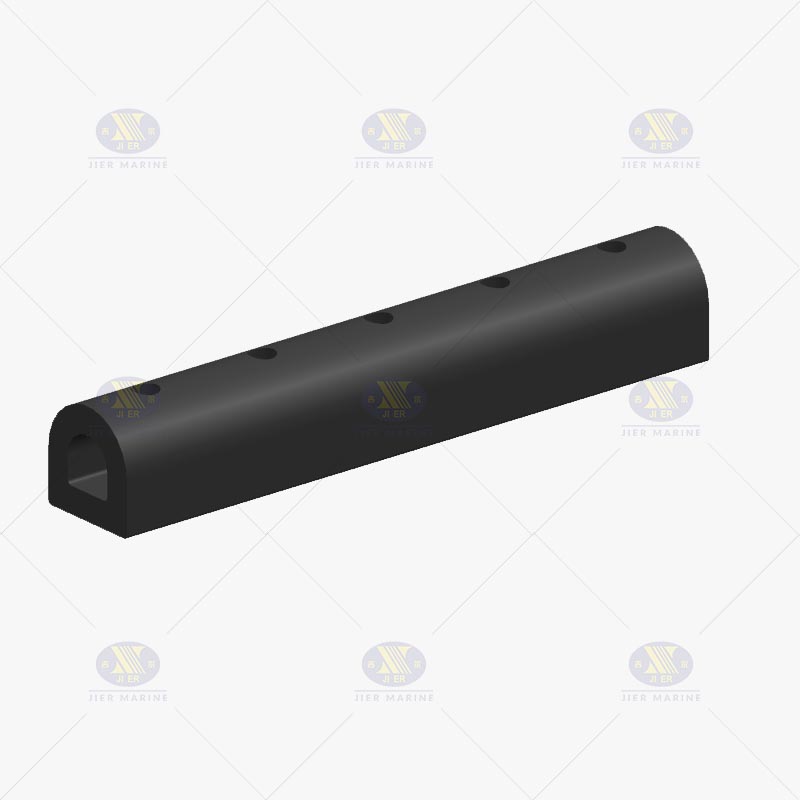

JIER MARINE JD D Type Fender is also called Extruded Rubber Fender, function as a barrier against damage from vessel and is popular for low cost and versatility.

D fenders are not limited to the length so we can manufacture any length of d fenders. D fenders are suitable for small quays, wharves and tugboats. Fenders are divided into two types according to their inner shape. One of them is D Fenders with D Bore and the other is D Fenders with Cylindrical Bore.
  • JDC JFO JDD JSD 150H-500H

  • JiErMarine—D Fender

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Attribute

◾ Ideal for smaller quays and wharves

◾ Easy to install with a flat bar down the bore

◾ Can be supplied in long lengths and be cut to length and angle at the en


Application

◾ Smaller jetties, quays and wharves

◾ Workboats and service craft

◾ Mooring pontoon protection

◾ Inland waterways

◾ General purpose applications

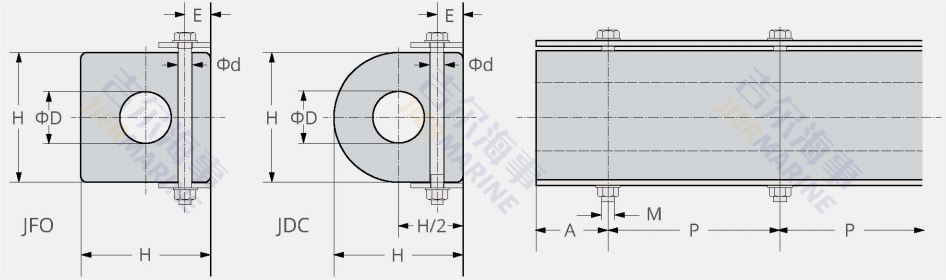

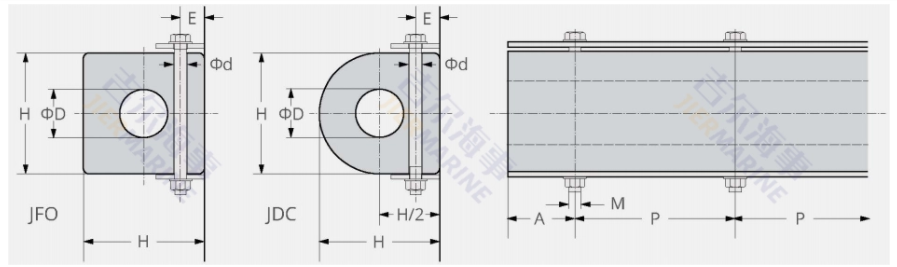

D fender model design

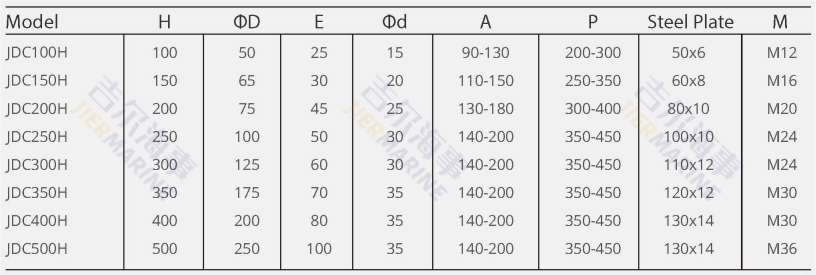

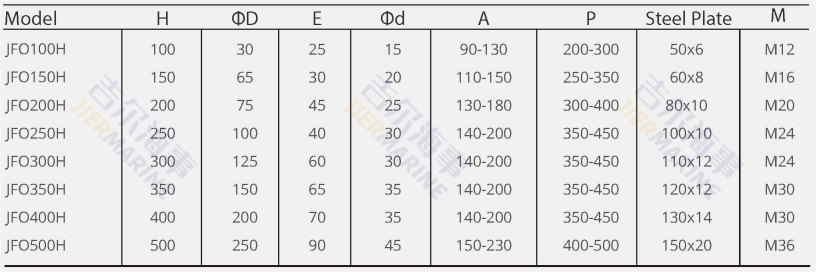

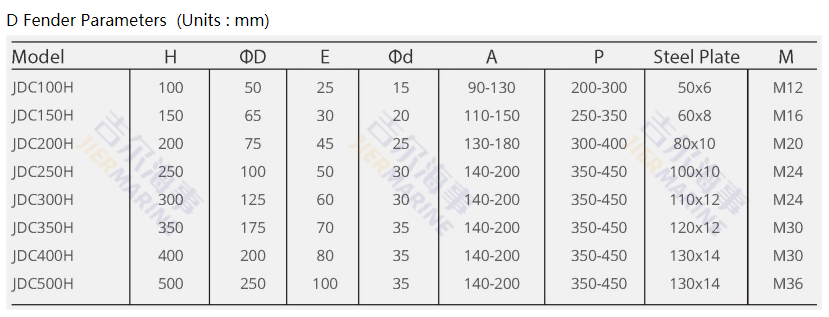

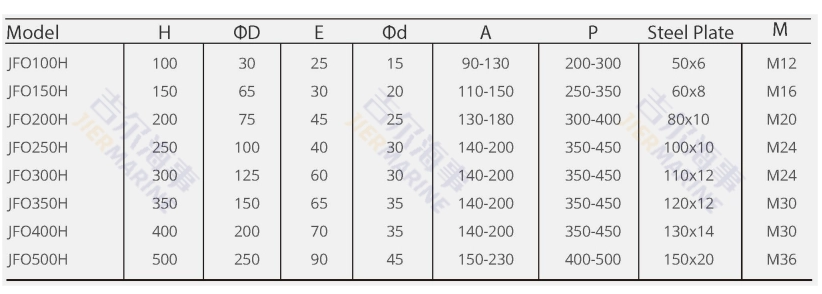

D Fender Parameters  (Units : mm)

D fender parameters


D fender parameters
