Wing Fender

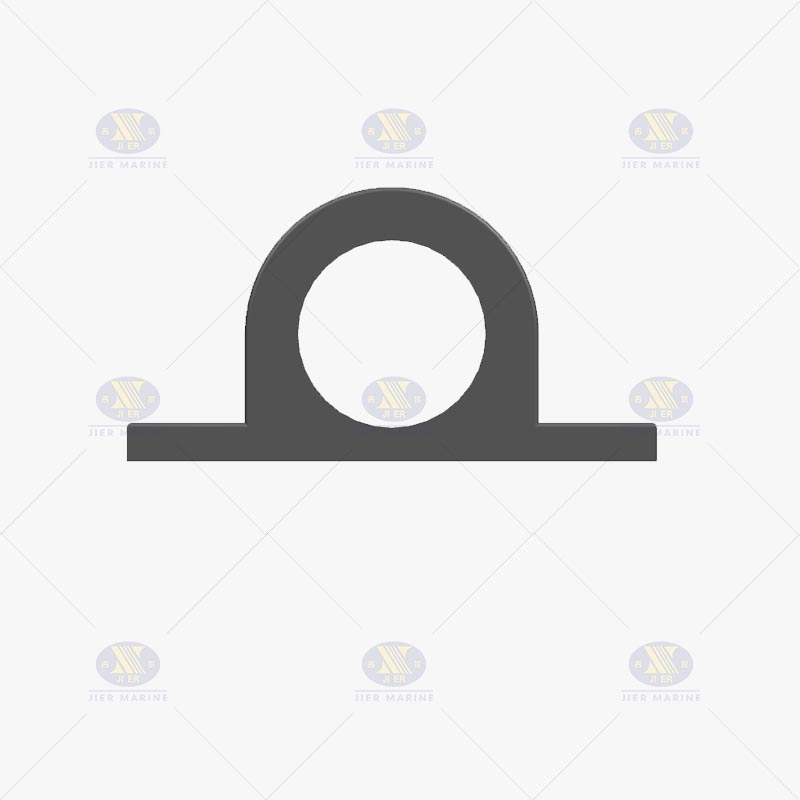

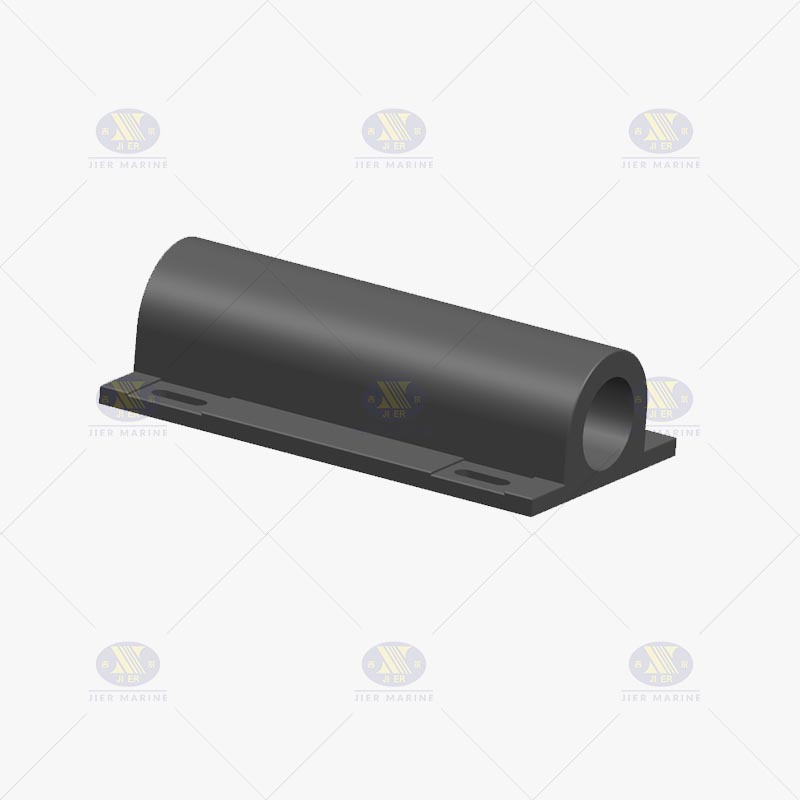

JIER MARINE JDO Wing Type Fender is usually used for tugs and workboats. Instead of drilling the fender, the wings of wing fender are retained by steel angles.

Wing fenders are jacked into the angles during installation and joints between adjacent sections are “plugged” to achieve a smooth and continuous contact face. Once fitted, the “wings” of the wing fender sit tightly within the angles making this arrangement very resistant to longitudinal and transverse shear.
  • JDO280H —— JDO300H

  • JiErMarine—DO Wing Fender

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Attribute

◾ Compact structure

◾ Easy installation

◾ Particularly applicable for framework qua


Application

◾ Jetties, quays and wharves for small craft

◾ Workboats harbours

◾ General cargo quays

◾ Inland waterway

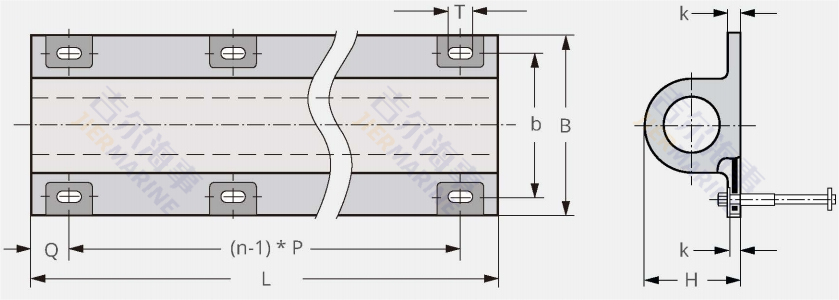

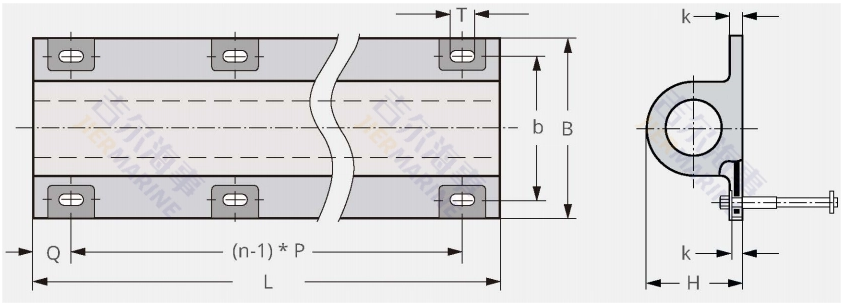

Wing fender model design

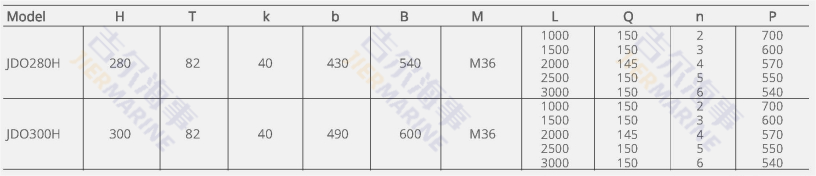

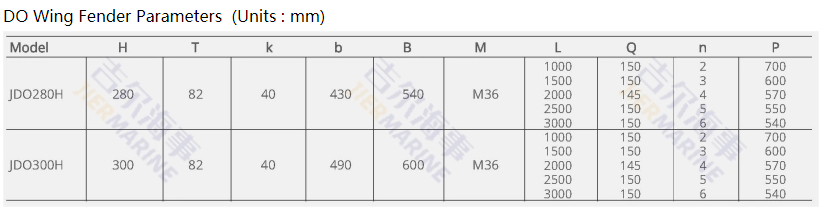

DO Wing Fender Parameters  (Units : mm)

Wing fender parameters
