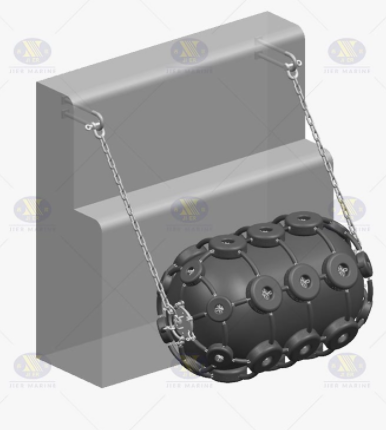

Pneumatic Rubber Fender

JIER MARINE JCQ Pneumatic Rubber Fender is made of synthetic-cord-reinforced rubber sheet with compressed air inside to enable it to float on the water and work as a shock absorber between two ships, or between ships and berthing structure when they come alongside each other on the water.



JIER Pneumatic Rubber fenders comply with all the requirements of ISO 17357-2:2014, ensuring high performance and high quality floating pneumatic fenders for safe berthing operations. The stringent requirements of this standard ensure that fenders are of a high quality and can withstand the rigorous environments and applications they are designed to operate in.



  • JCQ500X1000 —— JCQ4500X12000

  • Pneumatic Fender

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Attribute

• Adjust performance by varying initial pressure

• Suitable for areas with large or small tides

• Maintain large clearances between hull and structure

• Optional chain-tyre nets for heavy duty applications

• Easy installation

• Very low reaction and hull pressure


Application

• Adjust performance by varying initial pressure

• Suitable for areas with large or small tides

• Maintain large clearances between hull and structure

• Optional chain-tyre nets for heavy duty applications

• Easy installation

• Very low reaction and hull pressure

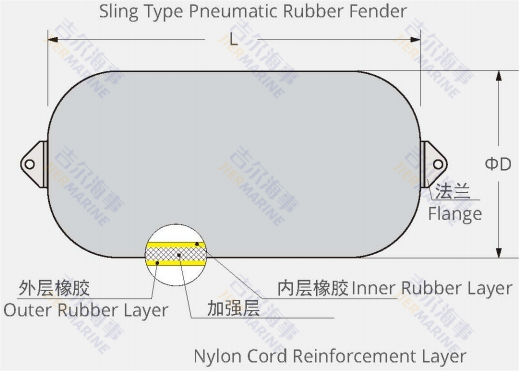

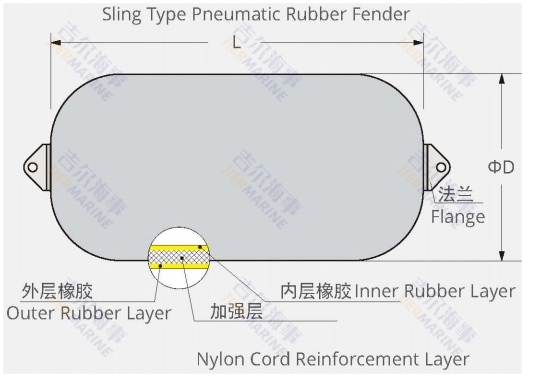

Pneumatic fender model design

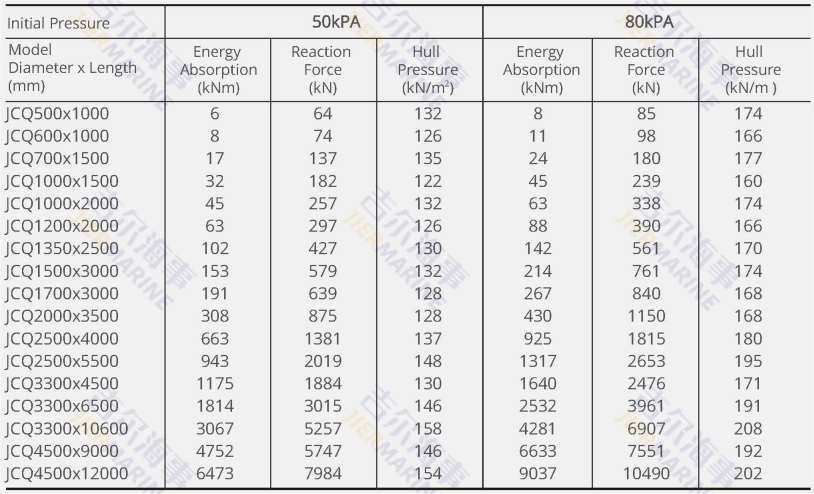

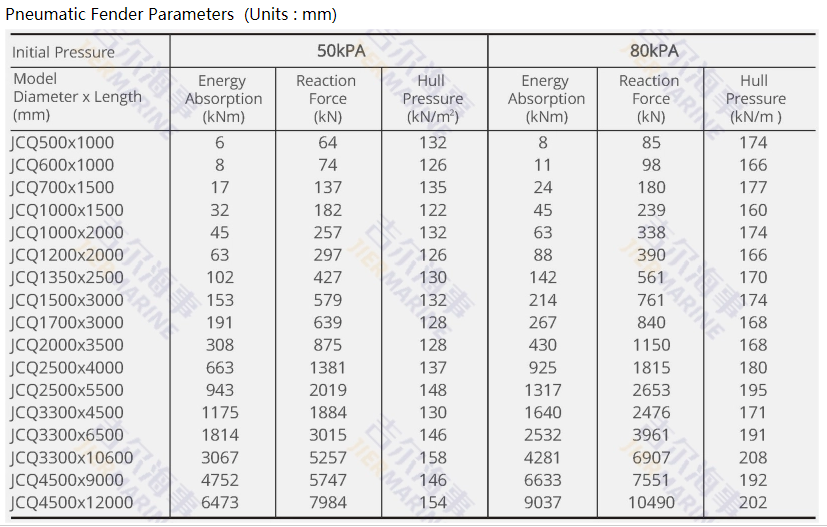

Pneumatic Fender Parameters  (Units : mm)

Pneumatic fender parameters
