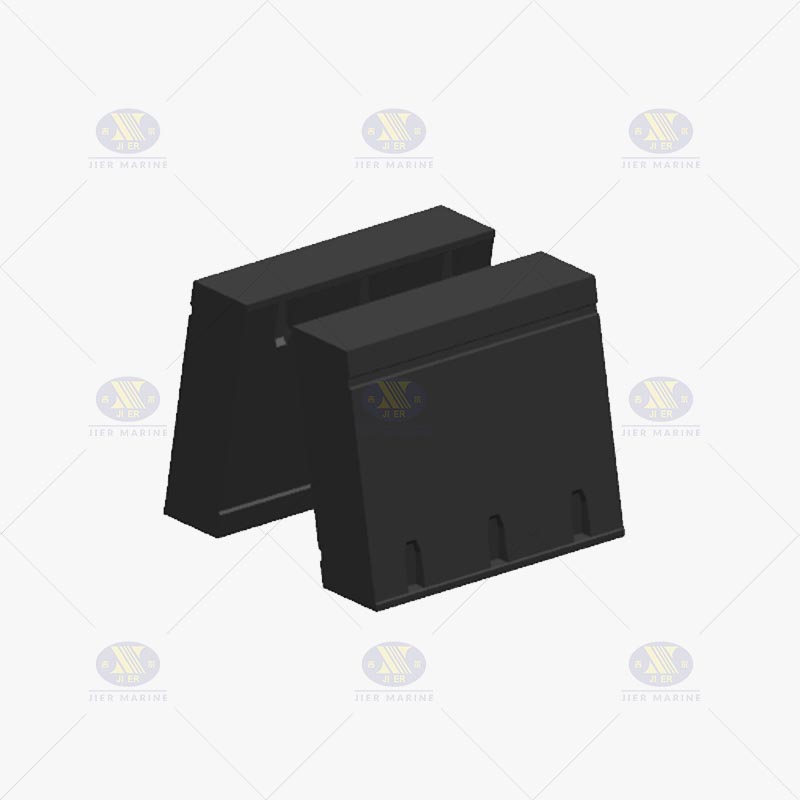

Unit Element Fender

JIER MARINE JUE Unit Element Fender is a high performance, modular system. Elements can be combined in unlimited permutations of length, orientation and Energy Index to suit a wide variety of applications.

The simplest Unit Element System is the UE-V fender which employs pair(s) of elements and a structural UHMW-PE face shield in a choice of black or high visibility colors. UE-V fenders combine high energy capacity with low friction face and high wear resistance.

Type: JUE300-JUE1600
Category: Marine Fender System
  • JUE300 —— JUE1600

  • JiErMarine—Unit Element Fender

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Attribute

Modular design allows limitless setting out arrangements

Efficiency buckling column profile for high energy and low reaction

Excellent shear resistance in lengthwise plane

Sizes to suit every application

Choice of standard and intermediate compounds

Standard and non-standard lengths available

Easy and quick to install


Application

◾ Container Terminals

◾ RoRo & Cruise Berths

◾ Bulk Terminals

◾ General Cargo Facilities

◾ Parallel Motion Fenders

◾ Fender Walls

◾ Small Ship Berths

◾ Many other applications

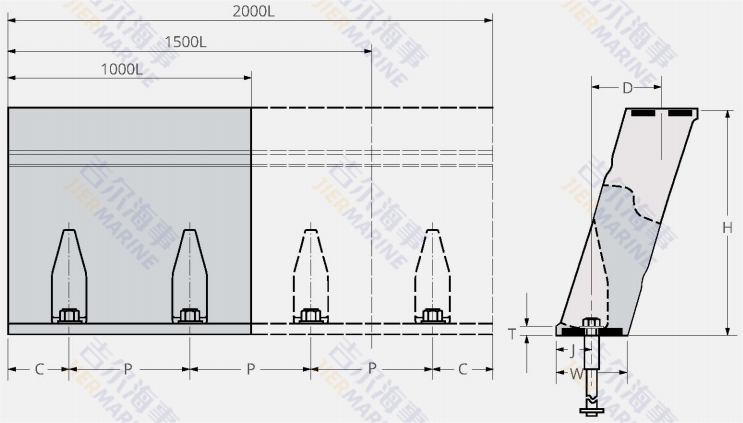

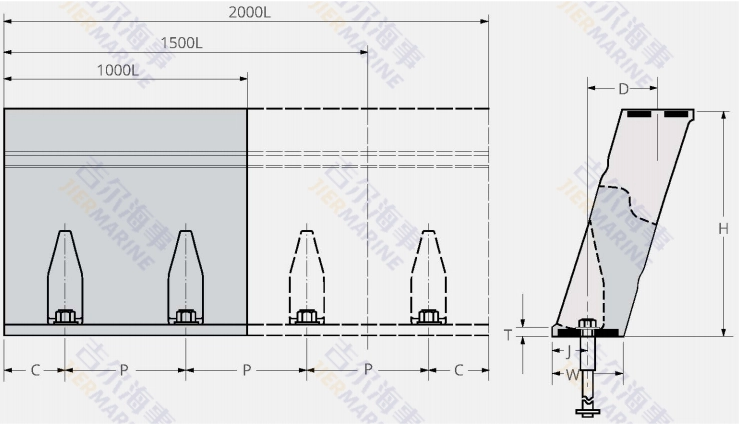

unit element fender model design

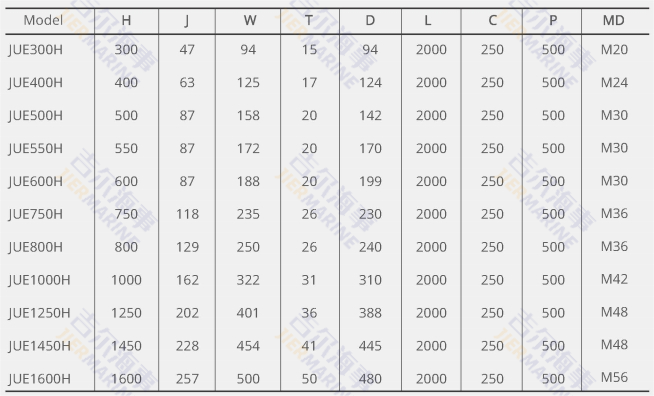

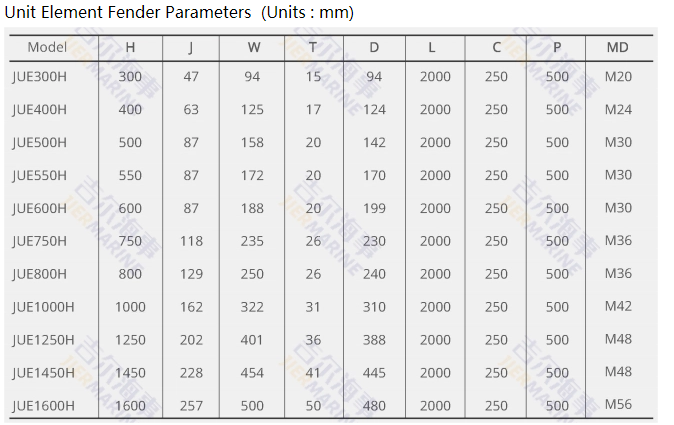

Unit Element Fender Parameters  (Units : mm)

unit element fender parameter
