Tricorn Bollard

JIER MARINE JBN Tricorn Bollards are applicable to any applications. It is ideal option for any mooring. JIER Marine Tricorn Bollard provides more holding power than any other bollard in its class, even on line angles up to 70° while tee head bollard can handle line angle up to 45°. Its generous trunk diameter reduces mooring line stresses. Capacities up to 250ton are available.

  • JBN10 —— JBN300

  • JiErMarine—Tricorn Bollard

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Attribute

◾ Load fuse option

◾ High holding power

◾ Low temperature materials option

◾ Standard or custom base plates

◾ No anchor stresses

◾ Very high vertical line angles


Application

◾ General purpose berths

◾ Bulk terminals

◾ Oil and LNG facilities

◾ Container berths

◾ RoRo and cruise terminals

◾ Monopiles and dolphins

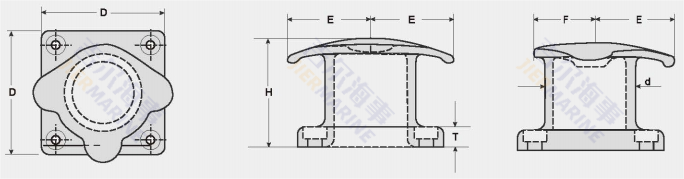

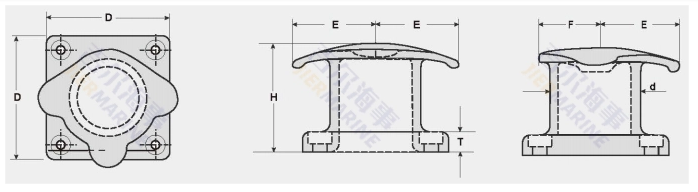

tricorn bollard

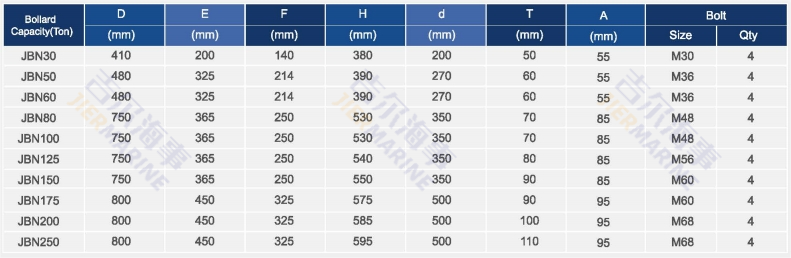

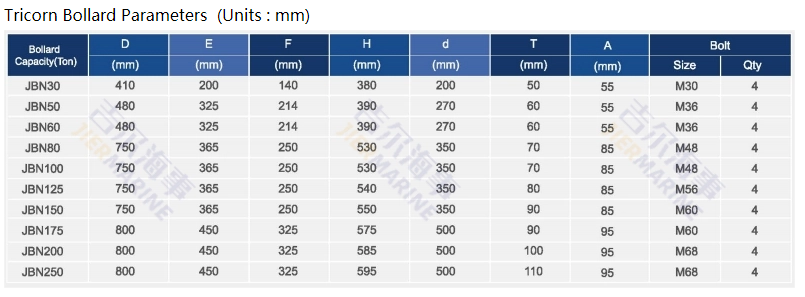

Tricorn Bollard Parameters  (Units : mm)

tricorn bollard parameters

Tricorn Bollard
