Overview
Offshore oil and gas operations demand the highest level of safety, reliability, and engineering precision. Among the key components ensuring safe vessel berthing and cargo transfer is the Quick Release Offshore Hook (QROH) — a heavy-duty mooring device designed for controlled and emergency release under full load conditions. In FPSO and offshore terminal operations, this equipment is not optional. It is a safety-critical system.

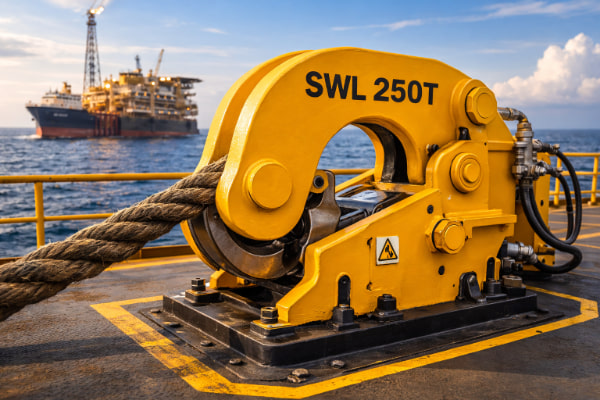

What Is a Quick Release Offshore Hook?
A Quick Release Offshore Hook is a high-capacity mooring hook installed on offshore structures such as:
Floating Production Storage and Offloading (FPSO)
Floating Storage Units (FSO)
Single Point Mooring (SPM) systems
CALM buoys
Offshore loading terminals
Its primary function is to secure mooring lines during berthing operations and allow rapid release — even when the line is under high tension. Unlike conventional quay hooks used in ports, offshore quick release hooks are engineered to operate in dynamic and harsh marine environments where safety margins are significantly higher.
Why Quick Release Capability Is Essential Offshore
During side-by-side mooring between shuttle tankers and FPSOs, environmental forces such as wind, waves, and currents can cause sudden load increases on mooring lines. If excessive tension is not relieved in time, the consequences may include:
The quick release function acts as the final safeguard in such situations, enabling operators to disengage mooring lines immediately and prevent escalation.
Main Components of an Offshore Quick Release Hook System
A complete system generally consists of the following:
1. Hook Body
High-strength cast or forged steel construction
Designed for SWL ranging from 100T to 600T or higher
Corrosion-resistant coating systems suitable for offshore environments
2. Hydraulic Power Unit (HPU)
Provides the force required for remote release
Typical working pressure: 150–250 bar
Often equipped with accumulators for emergency operation
3. Load Monitoring System
4. Control System
Local deck-mounted control panel
Remote operation from Central Control Room (CCR)
Manual backup release function for redundancy
Typical Technical Specifications
Parameter | Typical Range |
Safe Working Load (SWL) | 100T – 600T |
Yield Load | ≥ 2 × SWL |
Release Mode | Hydraulic + Manual Backup |
Working Pressure | 150–250 bar |
Installation | Welded into deck plate |
Surface Protection | Offshore-grade epoxy coating |
Specifications may vary depending on vessel size, environmental conditions, and project requirements.
Offshore vs. Conventional Mooring Hooks
Feature | Conventional Port Hook | Offshore Quick Release Hook |
Release Method | Manual | Hydraulic Remote |
On-Load Release | Limited or unavailable | Mandatory |
Load Monitoring | Rare | Integrated |
Safety Level | Port standard | Offshore safety-critical |
The difference lies not only in capacity but in engineering philosophy: offshore systems prioritize redundancy, monitoring, and emergency readiness.
Engineering Considerations for Selection
When selecting a Quick Release Offshore Hook, engineers should evaluate:
Vessel displacement and mooring arrangement
Environmental loading conditions
Required SWL and safety factors
Deck structural integration
Hydraulic system redundancy
Compliance with MEG4 and client specifications
Proper selection ensures long-term operational safety and regulatory compliance.
Conclusion
The Quick Release Offshore Hook is more than a mooring accessory — it is a critical safety component in offshore oil and gas operations. As offshore environments become more complex and international safety standards continue to tighten, MEG4-compliant quick release systems are essential for FPSOs, FSOs, and offshore terminals worldwide. Investing in high-quality offshore quick release hook systems ensures:
Enhanced operational safety
Regulatory compliance
Reduced risk of structural damage
Improved environmental protection
