A Complete Guide to Installing and Maintaining Quick Release Hooks (QRH) for Safe Berthing Operations

1. Key Installation Guidelines for Quick Release Hooks

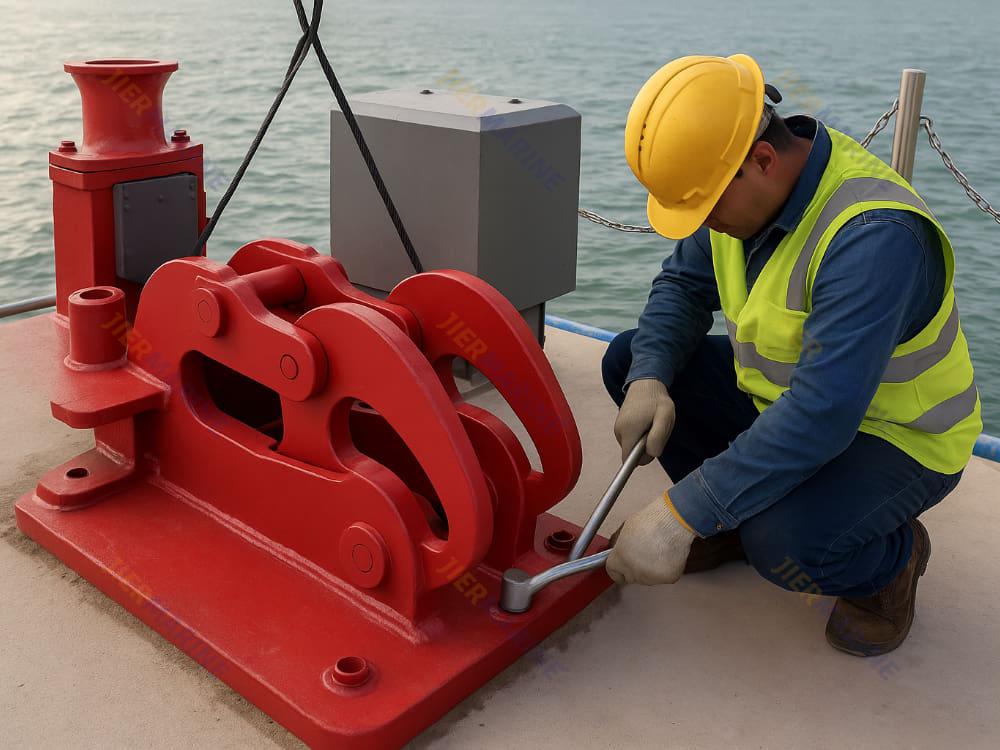

1.1 Foundation and Preparation

Before installation:

· Ensure the foundation surface is level and structurally sound.

· Verify anchor bolt spacing, alignment, and verticality.

· Prepare certified lifting tools, as each QRH unit typically weighs 2–3 tons.

A solid and accurate foundation ensures long-term stability and reduces operational risks.

1.2 Lifting and Positioning

When lowering the equipment:

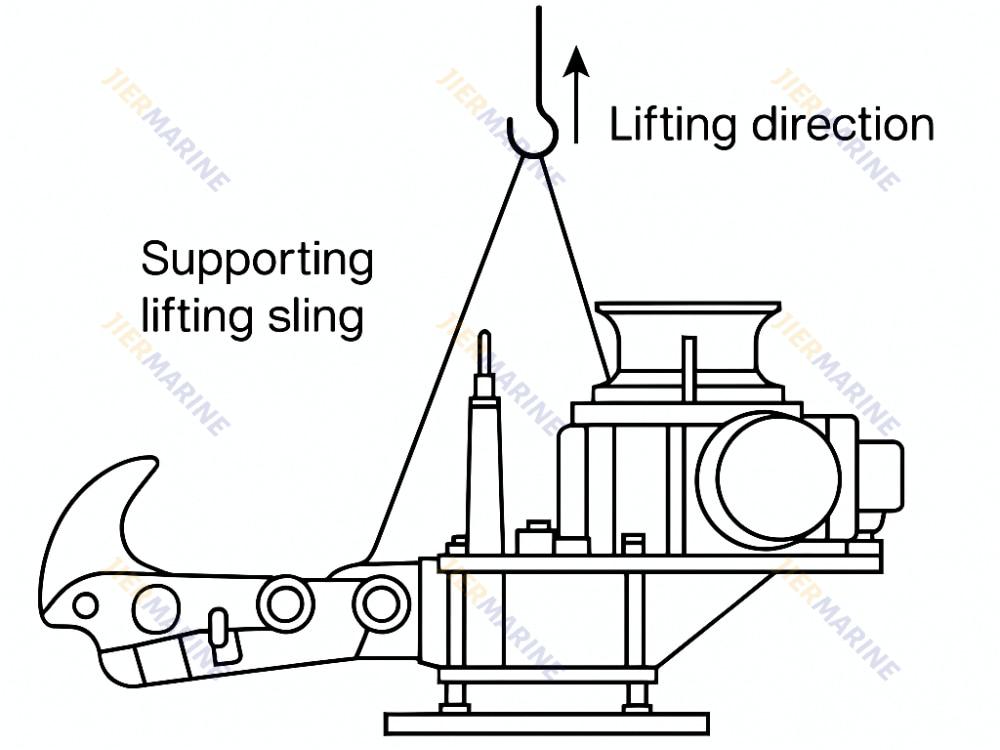

· Support the body using lifting slings through the hook base.

· Gently position the unit to align with embedded anchor bolts.

· Adjust the hook’s orientation toward the berthing direction for proper load distribution.

1.3 Electrical Control System Setup

For electric or intelligent QRH models:

· Mount the control cabinet at a convenient and safe location.

· Connect electrical power, control cables, and field switches according to wiring diagrams.

· Test motor forward/reverse rotation, emergency stop, and indicator lights.

A complete functional test must be performed after installation to ensure the release, reset, and rope-twisting mechanisms operate correctly.

2. Routine Inspection and Preventive Maintenance

Regular equipment checks minimize downtime and prevent unexpected failures.

2.1 Mechanical Component Inspection

Operators should frequently check:

· Hook assembly for cracks, deformation, or wear.

· Pressure block and roller for smooth flipping action.

· Springs and pins for corrosion or fatigue.

· Anchor bolts for looseness or rust.

Any abnormality should be addressed immediately to maintain safe operation.

2.2 Electrical System Check

· Confirm stable power supply and functioning indicator lights.

· Test remote/local release operation.

· Inspect contactors and brake modules for overheating or improper movement.

3. Lubrication and Periodic Servicing

Proper lubrication significantly extends the life of QRH components.

Recommendations:

· Apply grease to all lubrication points monthly.

· Clean old grease before reapplying new lubricant.

· Avoid mixing incompatible grease types.

· Check gearbox oil levels for models equipped with rope-twisting winches.

4. Common Issues and Troubleshooting

4.1 Hook Fails to Lock

Possible causes: misaligned pressure block, weakened spring, or mechanical obstruction.
Solution: clean, lubricate, and replace worn components.

4.2 Motor Fails to Start

Possible causes: defective contactor, loose wiring, brake not released.
Solution: inspect electrical connections and control modules.

4.3 Rope-Twisting Speed is Slow

Possible causes: gearbox lubrication shortage or brake drag.
Solution: replenish lubricants and adjust the brake.

5. Conclusion

Quick Release Hooks play a crucial role in port safety and vessel-handling efficiency. A well-installed and properly maintained QRH system ensures smooth operations and minimizes safety risks.
By following standardized installation steps and adopting a structured maintenance schedule, operators can significantly enhance system reliability and extend equipment lifespan.
