How DGPS Transforms Mooring System Monitoring for FPSOs and FLNGs

Inquire

In offshore energy production, safety and stability depend on one invisible yet vital component — the mooring system. As FPSOs (Floating Production Storage and Offloading units) and FLNGs (Floating Liquefied Natural Gas units) move into deeper waters, monitoring these moorings becomes more complex and more crucial.

Traditional load cell and strain-based monitoring methods are often expensive, maintenance-heavy, and prone to signal drift or corrosion. This is where DGPS (Differential Global Positioning System) steps in — offering a high-precision, low-maintenance alternative for real-time position-based monitoring.

2. What Is DGPS and How Does It Work?

DGPS enhances standard GPS by using ground-based reference stations to correct positioning errors caused by satellite orbit drift, atmospheric delays, and timing inaccuracies.

The result: positioning accuracy improves from around 10 meters (standard GPS) to 0.1–1.0 meter with DGPS correction.

DGPS receivers onboard an FPSO continuously receive both satellite data and correction signals from reference stations (or satellites like WAAS and EGNOS). The system computes real-time position and heading with remarkable accuracy — enough to detect subtle vessel movements caused by mooring tension changes or line failures.

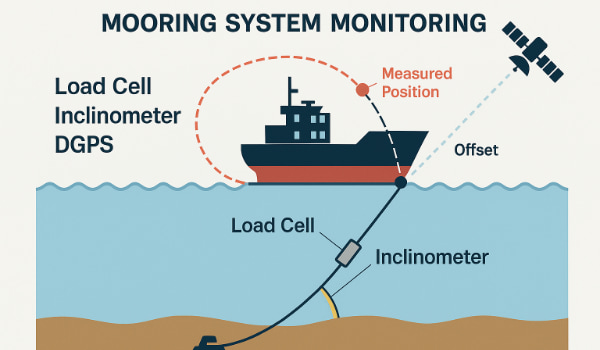

DGPS-for-FPOS

3. DGPS in Mooring Monitoring

In a moored floating unit, even a single mooring line failure will slightly shift the vessel’s equilibrium position. DGPS can instantly detect this offset. By comparing real-time coordinates to baseline reference positions, operators can identify abnormal excursions, creep trends in polyester lines, or transient drift during storms.

Typical setup:

(1) Dual antennas installed on the vessel bridge (port & starboard)

(2) Laptop interface displaying live offset vectors and heading

(3) Auto-alarm triggered when offset exceeds thresholds

Key advantages:

✅ No underwater sensors or cables

✅ Accuracy within ±0.5 m RMS

✅ Low cost and minimal maintenance

✅ Fast detection of mooring line failures

✅ Suitable for FPSO, FSO, FLNG, and SPM systems

4. Comparison: DGPS vs Traditional Load Monitoring

Feature / 特点	Traditional Load Cells / 传统载荷传感	DGPS Monitoring / DGPS监测
Monitoring Target / 监测目标	Measures tension in individual mooring lines	Monitors overall vessel offset and heading changes
Sensor Location / 传感位置	Installed underwater or below deck, often hard to access	Installed on bridge or deck, fully topside
Maintenance / 维护性	Complex and frequent maintenance due to corrosion and calibration drift	Simple and infrequent, minimal servicing required
Reliability / 可靠性	Susceptible to corrosion, drift, and cable failure	High reliability, immune to subsea conditions and electrical noise
Installation Cost / 成本	High — requires subsea installation and heavy cabling	Low — lightweight antennas and simple integration
Real-Time Detection / 实时性	Manual interpretation often required; slow to detect line failure	Automatic real-time detection of line failure and abnormal offset
System Lifetime / 使用寿命	Strongly affected by environment, short service life	Long operational life, stable and robust over time

5. Integration and Future Trends

DGPS does not replace all monitoring systems — it complements them. The most effective configuration combines DGPS position tracking with environmental sensors, inclinometers, and numerical models, providing a holistic view of the vessel’s mooring behavior.

As offshore digitalization accelerates, DGPS data is increasingly integrated into cloud platforms, AI algorithms, and real-time dashboards for predictive maintenance.

Future systems will combine DGPS with acoustic telemetry and machine learning to form intelligent mooring integrity ecosystems.

DGPS has transformed mooring monitoring from a complex, sensor-heavy task into a smart, position-based approach. It provides accurate, reliable, and easily deployable insight into the behavior of moored offshore units — ensuring safety before failures occur.

Conclusion

As the offshore industry pursues digital resilience, DGPS stands as one of the most practical and cost-effective tools for real-time integrity management of FPSOs and FLNGs.
